Three Target All Glass Tube Solar Water Heater 58 X 1800 Mm Anti Corrosive

Name: Three Target All Glass Tube Solar Water Heater 58 X 1800 Mm Anti Corrosive
Brand: SolarShine/OEM
Price: 1 USD

Brand Name : SolarShine/OEM

Model Number : ECO/PLUS

MOQ : solar water heater

Capacity : 155-450L

Installation : Freestanding

Housing material : Stainless Steel

Type : Evacuated Tube

Certification : CE

Circulation type : Direct / Open Loop (Active)

Connection type : Direct-Plug

Warranty : 5 Years for the full system /15 Years for the vacuum tube

Heating system : Thermosyphon (Passive)

Pressure : Unpressurized

Inner tank : SUS304-2B Stainless Steel,SUS304,SUS304-2B food grade type

Outer tank : Painted steel-0.4mm/stainless SUSS304-BA Shiny 0.4mm

Application : Bath,Domestic Hot Water,hot water use,washing,commercial use

Frame : Aluminum Alloy,Stainelss Steel/galvanized

Vacuum tube : 58mm/1800mm,58*1800,Heat Pipes + 58 x 1800mm Three-target all glass tubes

Color : as request

Product name : solar water heater,vacuum tube Heat Pipe Solar Water Heater

Name : Solar Water Heater System,Vacuum Tube Solar Water Heater

Item : solar hot water heater,Vacuum Tube Solar Collector,Compact Non Pressurized Solar Water Heater

Vacuum tube quantity : 24-48PCS

Insulation material : polyurethane

Contact Now

If you are looking for a nice and reliable solar water heater for your house, we can supply very good quality models for you. We supply 2 series of vacuum tube non-pressurized solar water heater, ECO Series and PLUS+ Series.

Eco evacuated tube non-pressurized solar water heater is design for very high cost-effective application.

PLUS+ Series is design for very high-class application, with larger water tank volume+ alum mounting frame,and thicker insulation layer.

Feature

1.Super anti-corrosive outer tank: Outer tank is made by SUS304 2B stainless steel. Suitable for the seaside area,such as East South Asia.

2. Strong inner tank with stainless steel up to 0.41mm.

3. High efficiency vacuum absorber tubes.

4. Equip with intelligent automatic system controller and back-up electric heater.

SPECIFICATION DATA
SERIES	ECO Series
MODEL	ECO-155L-20T		ECO-185L-24T		ECO-230L-30T		ECO-275L-36T
Volume	155L		185L		230L		275L
Vacuum tube quantity	20PCS		24PCS		30PCS		36PCS
Solar vacuum tube	ø58 x 1800mm/ high efficiency solar evacuated Tube,
Inner tank material	SUS304 2B food-grade stainless steel / wall thickness =0.41mm
Outer tank material	SUS304 2B food-grade stainless steel / wall thickness =0.31mm
Water Tank ext size	ø450x1625mm		ø450x1925mm		ø450x2375mm		ø450x2825mm
Water tank inner size	ø360x1525mm		ø360x1825mm		ø360x2225mm		ø360x2725mm
Insulation / thickness	High-density polyurethane foaming/45mm
Frame material	201# Stainless steel frame/ 30 x 60mm / 38^o mounting degree
Intelligent controller	Full Automatic system controller
Electric heater	1.5KW		1.5KW		2KW		2KW

SERIES	PLUS+ SERIES
MODEL	PLUS-173L-20T		PLUS-205L-24T		PLUS-260L-30T		PLUS-310L-36T
Volume	173L		205L		260L		310L
Vacuum tube quantity	20PCS		24PCS		30PCS		36PCS
Solar vacuum tube	ø58 x 1800mm/ high efficiency solar evacuated Tube,
Inner tank material	SUS304 2B food-grade stainless steel / wall thickness =0.41mm
Outer tank material	SUS304 2B food-grade stainless steel / wall thickness =0.31mm
Water Tank ext size	ø5000x1625mm	ø500x1925mm		ø500x2375mm		ø500x2825mm
Water tank inner size	ø380x1525mm	ø380x1825mm		ø380x2225mm		ø380x2725mm
Insulation / thickness	High-density polyurethane foaming/60mm
Frame material	Aluminum alloy / 100CM width / 38^o mounting degree
Intelligent controller	Full Automatic system controller
Electric heater	1.5KW	2KW		2KW		2KW

Three Target All Glass Tube Solar Water Heater 58 X 1800 Mm Anti Corrosive

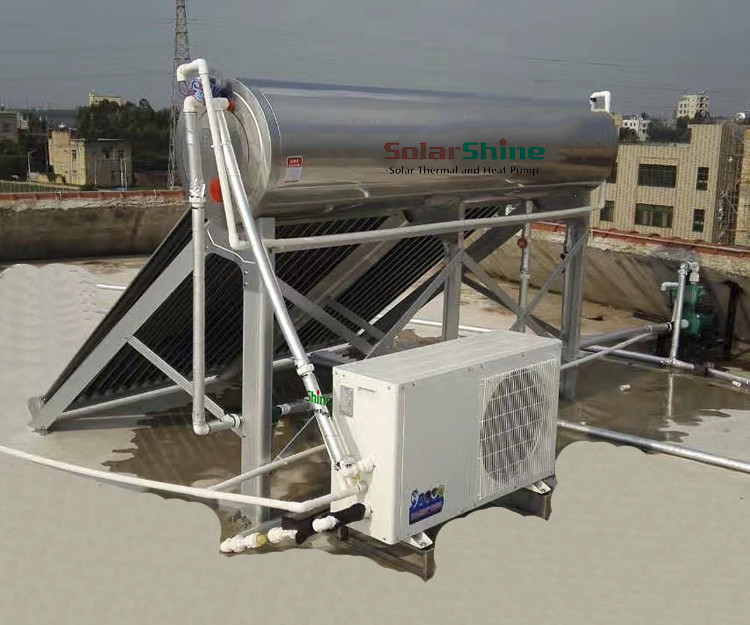

SUCCESSFUL APPLICATIONS:

Three Target All Glass Tube Solar Water Heater 58 X 1800 Mm Anti Corrosive
